clc;clear all;close all;

[A,B,C]=xlsread('Correlation_FullDayData.xlsx',1);
ht= A(1,(1:44))';
Bayes_WindSpeed_MT=A(138,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',2);
Bayes_Zonal_MT=A(138,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',3);
Bayes_Meridonal_MT=A(138,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',7);
tWindSpeed=A(141,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',8);
tZonal=A(141,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',9);
tMeridonal=A(141,(1:44));
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',14);
gpsWS = A(3,(1:44))';%'purple'
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',15);
gpsU = A(3,(1:44))';
[A,B,C]=xlsread('Correlation_FullDayData.xlsx',16);
gpsV = A(3,(1:44))';
ylsp = round(linspace(1,numel(ht),12));

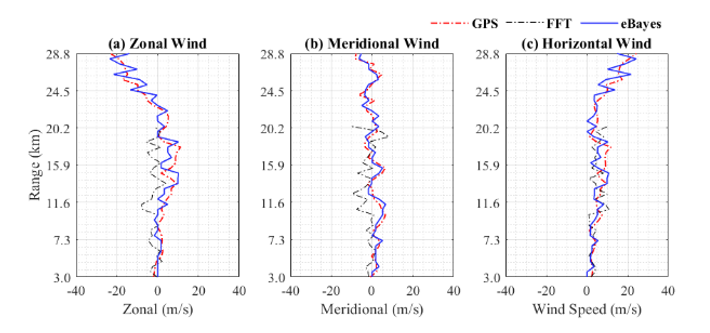

UVW_Bayes_tFFt=figure(1); set(UVW_Bayes_tFFt, 'PaperType', 'a4'); set(UVW_Bayes_tFFt, 'PaperOrientation', 'portrait');set(UVW_Bayes_tFFt, 'Resize', 'on');set(UVW_Bayes_tFFt, 'Position',[0 0 2480*(80/100) 3508*(80/100)]);

subplot(3,3,4);

plot(gpsU,ht,'-.r', 'LineWidth', 1);

hold on;

plot(tZonal,ht,'color','black', 'LineStyle','-.','LineWidth', 0.5);

plot(Bayes_Zonal_MT,ht,'color','#1E28FA', 'LineWidth', 1);

axis tight;

t= title(' ','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

t.FontWeight = 'bold';

subtitle('(a) Zonal Wind','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

x = xlabel('Zonal (m/s)', 'FontSize',12, 'FontName','Times New Roman', 'FontWeight', 'Normal');

xlim([-40, 40]);

y = ylabel('Range (km)','FontSize',12,'FontName','Times New Roman', 'FontWeight', 'Normal');

y.FontWeight = 'bold';

set(gca, 'YTick', linspace( (min(ht)), (max(ht)), 7));

set(gca,'FontSize',11,'FontName','Times New Roman', 'FontWeight', 'Normal');

ytickformat('%.1f');

grid minor; grid on; box on;

hold off;

subplot(3,3,5);

plot(gpsV,ht,'-.r', 'LineWidth', 1);

hold on;

plot(tMeridonal,ht,'color','black','LineStyle','-.', 'LineWidth', 0.5);

plot(Bayes_Meridonal_MT,ht,'color','#1E28FA', 'LineWidth', 1);

axis tight;

t= title(' ','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

t.FontWeight = 'bold';

subtitle('(b) Meridional Wind','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

x = xlabel('Meridional (m/s)','FontSize',12,'FontName','Times New Roman', 'FontWeight', 'Normal');

xlim([-40, 40]);

set(gca, 'YTick', linspace( (min(ht)), (max(ht)), 7));

set(gca,'FontSize',12,'FontName','Times New Roman', 'FontWeight', 'Normal');

ytickformat('%.1f');

grid minor; grid on; box on;

hold off;

subplot(3,3,6);

plot(gpsWS,ht,'-.r', 'LineWidth', 1);

hold on;

plot(tWindSpeed,ht,'color','black', 'LineStyle','-.','LineWidth', 0.5);

plot(Bayes_WindSpeed_MT,ht,'color','#1E28FA', 'LineWidth', 1);

axis tight;

t= title(' ','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

t.FontWeight = 'bold';

subtitle('(c) Horizontal Wind','HorizontalAlignment','center','FontName','Times New Roman', 'FontWeight', 'bold','fontsize', 12);

x = xlabel('Wind Speed (m/s)','FontSize',12,'FontName','Times New Roman', 'FontWeight', 'Normal');

xlim([-40, 40]);

set(gca, 'YTick', linspace( (min(ht)), (max(ht)), 7));

set(gca,'FontSize',12,'FontName','Times New Roman', 'FontWeight', 'Normal');

ytickformat('%.1f');

grid minor; grid on; box on;

legend ({'GPS','FFT','eBayes'},'Location','none','Position',[0.58950767267108 0.635700313104456 0.311269687972669 0.0192592596301325],'Orientation','horizontal','Box','off','FontSize',11,'FontName','Times New Roman', 'FontWeight', 'bold');

hold off;
